Toward Safe Aggregate Computing: A Distributed Control-Theoretic Safety Filter for Robot Swarms

Angela Cortecchia1, Alessandro Papadopoulos2, Danilo Pianini1

*1 Department of Computer Science and Engineering (DISI)
Alma Mater Studiorum – University of Bologna - Cesena, Italy
*2Department of Computer Science and Engineering
Mälardalen University, Västerås, Sweden

Safe adaptation in robot swarms

Collective strategies must respect physical constraints during execution

In search and rescue or environmental monitoring, a swarm must reach its goal — and stay safe on the way.

The swarm splits to squeeze between the obstacles, its communication links break, and it reforms on the other side

the group splits to get through: links break

The swarm goes around the obstacle while staying connected

what we want: around the obstacle, still connected

We need both an expressive way to specify collective behavior and a mechanism that enforces safety during execution.

Aggregate Computing

Programming the collective, not each robot

Aggregate Computing raises the programming abstraction from individual devices to collective behavior.

Developers compose computational fields: distributed values that evolve through local interaction across the network.

spreading information aggregating values electing leaders forming collective patterns

One global program is executed locally by all robots through repeated neighbor-to-neighbor interaction.

How AC executes

Sense → compute → communicate / act

Each robot repeatedly:

01

Senses local inputs and the latest messages from neighbors.

02

Computes the aggregate program using local state and neighbor information.

03

Communicates / acts by sharing the updated state and applying the local output.

Round-based model

Sense
Compute
Interact / Act
device
nbr
nbr
Sense
Compute
Interact / Act
Sense
Compute
Interact / Act
device
device
nbr
nbr
nbr
nbr

Global self-organizing behavior emerges from repeated local interaction.

The limitation: self-stabilization is eventual

Convergence is guaranteed, but only in the limit

01

AC building blocks are self-stabilizing: under stable inputs and topology, the swarm recovers from transient faults.

02

But the guarantee is eventual — a stable state is reached after an indefinite number of rounds.

03

Meanwhile the program keeps adapting, with nothing enforcing physical constraints at every instant.

obstacle collisions inter-robot collisions broken communication links

For robot swarms, eventual convergence is not enough: safety must also hold before convergence.

The safety layer

The aggregate command is filtered, not replaced

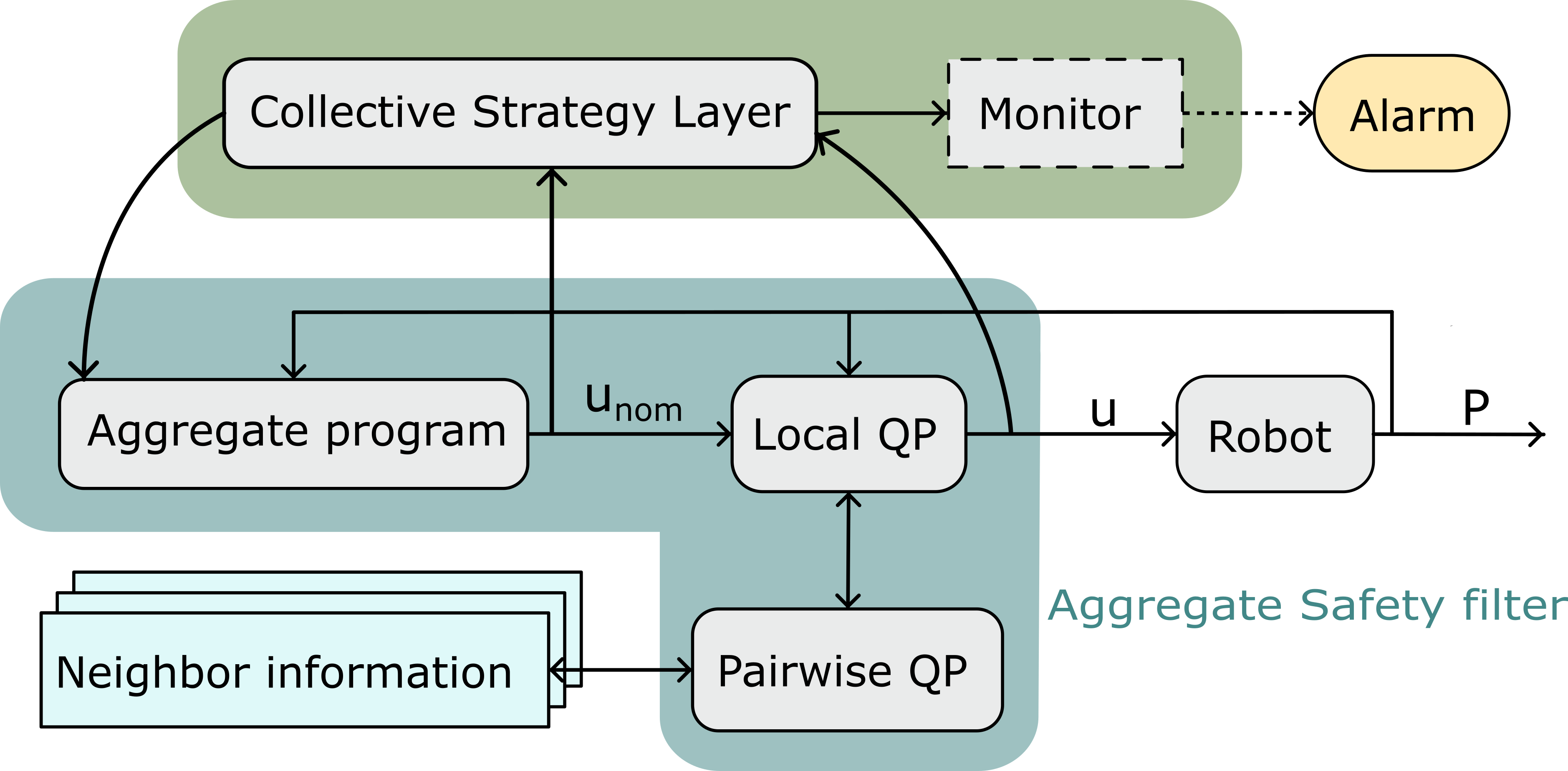

Architecture of the aggregate safety filter

Collective strategy and physical safety stay modular: AC commands are filtered, not replaced.

Control functions for convergence and safety

One score for progress, one score for danger

Control Lyapunov Functions (CLF) — what should happen
V = 0 at the target

V scores how far the robot still is from its goal. The controller must keep pushing that score down, toward zero.

Control Barrier Functions (CBF) — what must not happen
h ≥ 0 h = 0

h scores how much safety margin is left. The controller must never let that score reach zero.

CLFs encode what should happen; CBFs encode what must not.

Minimization Problem

As close as possible to the nominal command, without entering the unsafe region

\[ \min_{u,\,\delta \ge 0}\; \|u-u_{nom}\|^2 + \rho\delta^2 \]
\(\dot V \le -cV + \delta\) progress: soft CLF
\(\dot h_j \ge -\gamma_j h_j\) safety: hard CBFs
robot target unsafe unom u
unom — what the aggregate program asks for u — what the safety filter applies region the robot must stay out of

Stay as close as possible to the aggregate command, but never violate active hard safety constraints.

What can be enforced?

Reach the targetCLF on squared target distance
Avoid obstaclesCBF outside obstacle clearance
Avoid collisionsCBF above minimum robot separation
Preserve connectivityCBF below selected communication range
Respect speed limitsBound on the control input

The active constraints depend on the collective task being executed.

Distributed safety constraints

Device-wise view of local and pairwise quadratic programs

Local constraints

  • target convergence;
  • obstacle clearance;
  • speed limits.

Pairwise constraints

  • inter-robot collision avoidance;
  • selected communication-link preservation.

Pairwise constraints expose the distributed structure of the problem.

Proof of concept

4robots in 2D
2 mminimum separation
10 mcommunication range
2 m/smaximum speed

Collektive specifies the aggregate behavior  →  Alchemist simulates the swarm  →  Gurobi solves the QPs

This is a proof of concept: the goal is to validate the architecture, not yet to provide a scalability benchmark.

Scenario 1: different targets

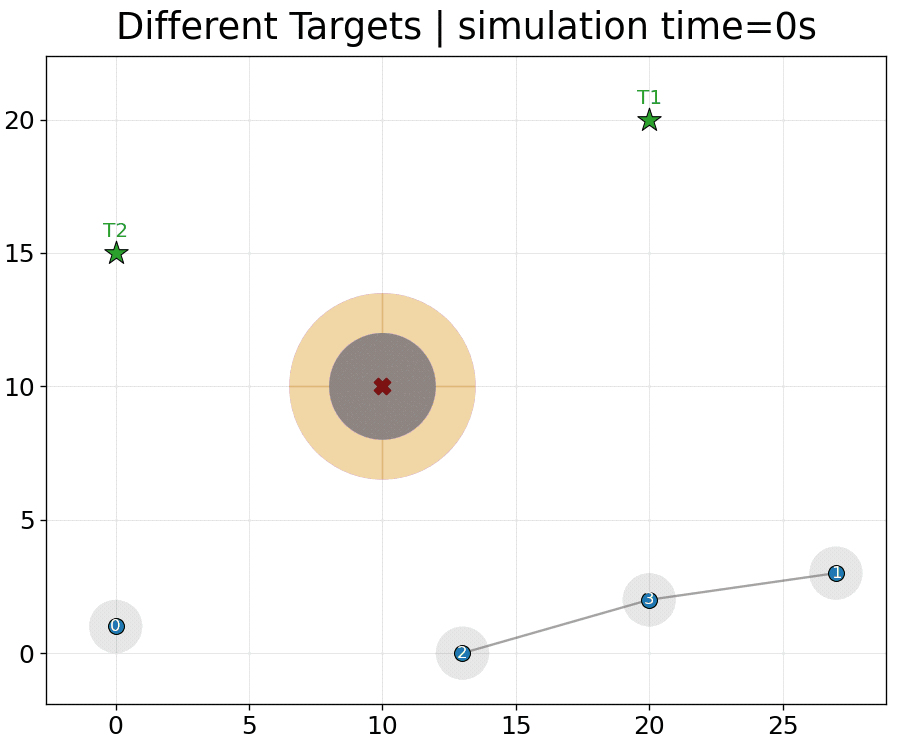

Animated simulation of robots reaching two different targets
Robots Robot safety radius Communication radius Links within communication distance ★Targets ✖Obstacles Obstacle safety margin

Different nominal goals, shared safety constraints: robots reach their targets while avoiding obstacles and collisions.

Scenario 2: leader election and connectivity

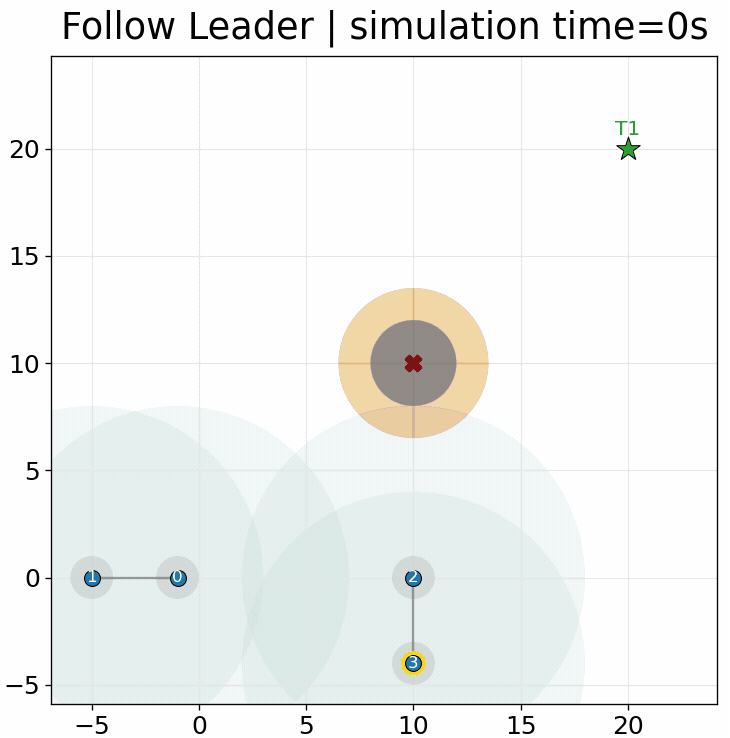

Animated leader-election and connectivity-preservation simulation
Robots Robot safety radius Communication radius Links within communication distance ★Targets ✖Obstacles Obstacle safety margin

The aggregate strategy adapts when clusters merge, while the safety filter preserves selected communication links.

Scenario 3: when safety reveals a strategy limit

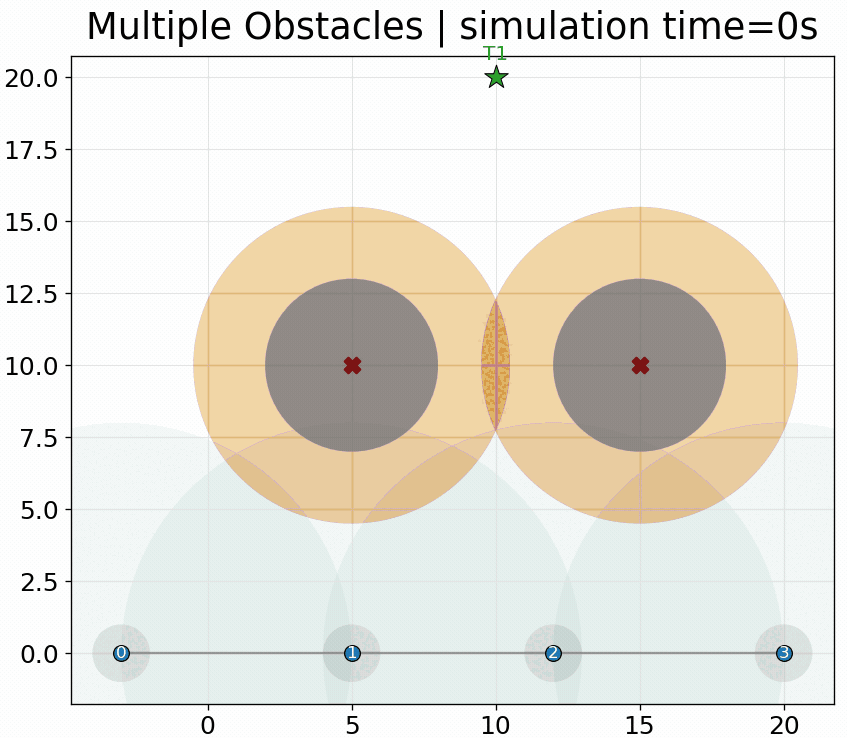

Animated simulation with multiple obstacles and a local minimum
Robots Robot safety radius Communication radius Links within communication distance ★Targets ✖Obstacles Obstacle safety margin

The filter correctly blocks unsafe motion, but a direct target policy can get trapped in a local minimum.

This motivates runtime strategy adaptation in the AC layer: switch target, waypoint, or exploration policy.

Conclusions and future work

Takeaways

01

Aggregate Computing specifies adaptive collective behavior at a high level.

02

CLF/CBF filtering makes convergence and safety requirements explicit before actuation.

03

Distributed optimization exploits local and pairwise structure through neighbor exchanges.

Future work

Quantitative evaluation

Measure convergence time, scalability, and communication overhead.

Complex collective behaviors

Explore formation control, flocking, and coverage.

Dynamic policies for target convergence

Handle local minima and improve adaptability in complex environments.

Safe Aggregate Computing keeps self-organization programmable while enforcing transient safety.

Thank you for the attention!

Reproducible experiments here:


angelacorte/experiments-2026-acsos-ws-carol
